Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Engineers available to service machinery overseas
60ton per day
Place of Origin:
Fujian, China (Mainland)
Containerized aluminum type ice block machine
Block Ice Machine
10 Set/Sets per Month
Packaging & Delivery
container or wooden crate.
Snowkey Containerized aluminum type ice block machine Feature:

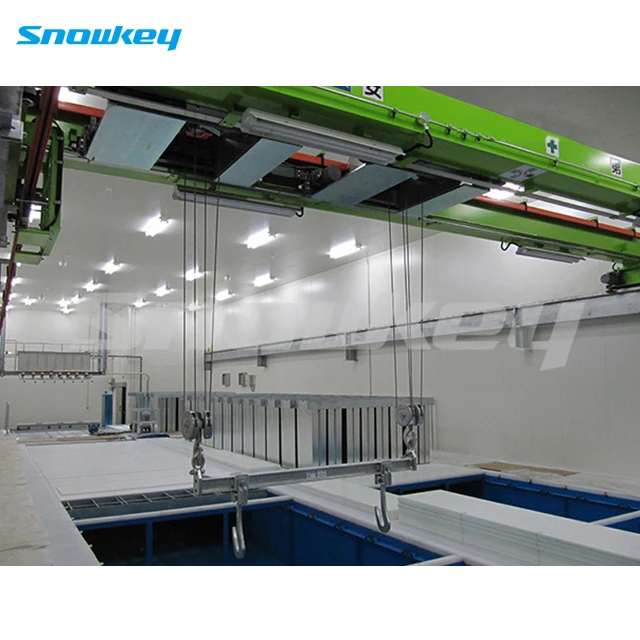

All parts in contact with brine or water are of stainless steel, galvanized or effectively anti-corrosiin treated. The brine-tank is fully insulated and covered by removable panels. The ice-cans are of stainless steel , whose thick sides (1.5mm) withstand evenrough handling. The ice is harvested with the aid of an electric overhead crane with push button control. Strong heating elements in the trawing bath ensure that the blocks detach quickly from the cans.The blocks then slide smoothly through an aperture into the ice storage room.
The freezing cycle of block ice machine takes about 8 hours, corresponding to
three continuous harvests per day,the basis of the indicated daily capacity.
Ice block , standard sized are: 12.5 kg = 150 x 130 x 700 mm 20 kg = 250 x 130 x 700 mm 25 kg = 300 x 130 x 700 mm 50 kg = 460 x 180 x 800 mm
