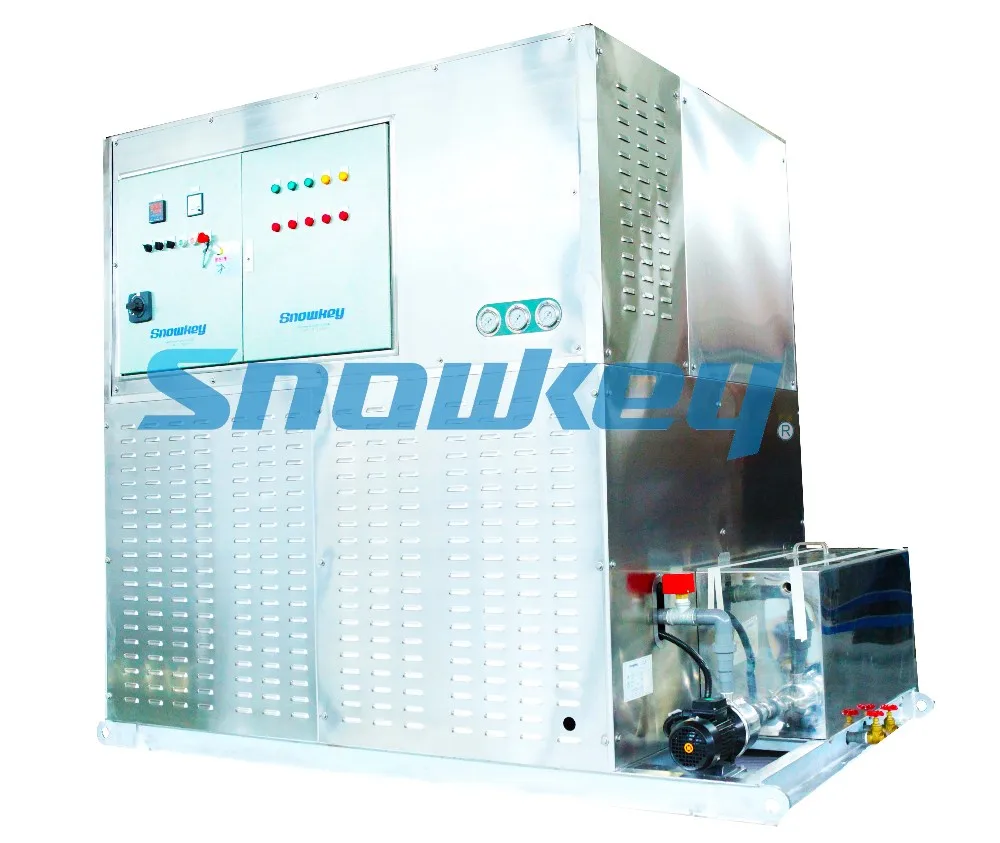

Newest Design 5 Ton Plate Ice Machine Commercial Ice Maker Ice Making Machine

FOB Reference Price:Get Latest Price
US $30,000-350,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Capacity:
5 t/day
Place of Origin:
China (Mainland)
Brand Name:
Snowkey
Model Number:
P50A
Ice Shape:
plate ice
Voltage:
380v/50hz/3p
Power(W):
4.67kw
Dimension(L*W*H):
1590*1070*1775mm
Weight:
1200kg
Certification:
CE
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Compressor:
Refcomp
Product Type:
Heat Exchanger
Refrigerant:
R22/R404A/R717
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden crate or container
Port
fuzhou
Lead Time :
40 days after down payment
Video Description

 Plate ice machine applications
1 Aquatic product processing, cooling,preserving and transportation
2 Edible ice making factory
3 Port ice making factory
4 Chemical projects and dye cooling and temperature reduction
5 Medical treatment and medicine
6 Cooling, temperature reduction and preservation, etc.
7 Cold storage central air conditioner
8 Cold water temperature reduction system
1404981373195_hz-fileserver-upload-04_507943

Plate ice machine conditions
Electrical require:        Full electric system complying
 With the general international standard
Standard condilion:     Water inlet temp.16°C Amibenttemp. 25°C
Application condilion: Ambient temp.5°C~40°C water temp. 5°C~35°C

Special condition:         Ambient temp.-30°C~60°C water temp.5°C~46°C
Ice thickness:                10~12mm
Refrigerant:                     R717,R22 ,R404A,R507A 5T .jpg

Plate ice machine evaporator feature
1.SNOWKEY plate ice ranges from 5mm to 30mm (wherein, 15mm to 30mm is specially designed) in thickness and 20mm to 50mm in width and has no fixed shape. Its thickness and width maybe freely adjusted according to use.
2.SNOWKEY plate ice boasts even cooling effect, good ventilation, and even constant refrigeration temperature. So it is very suitable for refrigerating aquatic products.
3.As transparent crystal, SNOWKEY plate ice doesn't melt easily, so it can be stored for a longer time. Ordinary ice is opaque since it contains air bubbles and impurities and is small in density, soft in texture and likely to melt. However, SNOWKEY plate ice is pure in color and luster, hard, transparent, dry and powerless. Due to small surface area, it achieves better cold storage effect and spends 30% more time in melting than other types of ice.
4.SNOWKEY plate ice fully conforms to the certification requirements of HACCP and FDA. It can be applied to such fields as ice cold storage air conditioners, edible ice, aquatic foods, chemical industry, etc.




Some standard plate ice machine list parameters and outline drawing
Modle(PIM)100WF150WF200WF300WF400WF1000WF
Ton/Day(ton)1015203040100
Machine structure

Evaporator compressor unit

Thickness(mm)10~1210~1210~1210~1210~1210~12
Length(mm)2110 22002900
1600
3620
2700
2900*2 27003620*2 2700*23620*5 2700*5
Width(mm)1700 12502200
1810
2200
2200
2200
2200
2200
2200
2200
2200
Hight(mm)2385 12702390
1360
2490
2190
2390
2190
2490
2190
2490
2190
Cooling water(DN)8080100100125200
Raw water inlet(DN)254040505065
Water drain (DN)504040505065
Power supply
cable port (mm)
404040505070
Net weight(kg)2500270030005400600015000
Compressor
power (HP)
506080120160400
Ice machine
pump power(kw)
1.11.52.22.24.48.8
Crusher power(kw)0.750.750.751.51.54
Evaporator(unit)2032406480200
Charged
refrigerant(kg)
60100140220280600
